The Craftsman RT4000 hydrostatic transmission problems most owners notice are slow movement, weak pulling power, or a mower that refuses to move at all. The good news is that many of these issues come from simple causes, not a dead transmission.
Hydrostatic systems are smooth and convenient, but they are also sensitive to fluid level, belt condition, air in the system, and dirty linkage parts. If you know the symptoms, you can often narrow the problem fast and avoid replacing parts that still work.
This guide shows the most common causes, the symptoms that match each one, and the fixes that usually solve the problem. You will also learn when the issue is likely inside the transmission itself and when it is safer to stop and get help.
For wider troubleshooting context, compare this guide with Craftsman hydrostatic transmission problems, Troy-Bilt Pony transmission problems.
How the RT4000 hydrostatic drive is supposed to work
The RT4000 uses a hydrostatic transmission, which means it changes engine power into movement through hydraulic pressure instead of a manual gear shift. In simple terms, the engine spins a pump, hydraulic fluid moves pressure to the drive unit, and the rear wheels turn. That gives you smooth speed control with no clutch shifting.
When the system is healthy, the mower should move forward and backward without hesitation. It should also keep steady speed on level ground and climb mild slopes without feeling like it is dragging. If it starts to creep, surge, or lose drive after warming up, that is a sign something in the system is not right.
One useful detail many owners miss: hydrostatic systems often fail gradually, not suddenly. A mower may still move, but it will feel weaker under load, especially after 15 to 30 minutes of use. That pattern matters, because it helps separate a drive issue from an engine issue.
What makes hydrostatic problems different from engine problems
If the engine runs well but the mower will not move correctly, the transmission or drive linkage is usually the first place to check. If the engine bogs down, stalls, or loses RPM before the mower stops moving, the problem may be fuel, air, or ignition instead. That difference saves time.
Another clue is consistency. A transmission problem often changes with heat, load, or direction. An engine problem usually affects mowing performance too, not just movement. The mower may cut poorly, surge, or die on hills.
Most common causes of Craftsman RT4000 hydrostatic transmission problems
Most RT4000 drive complaints come from five areas: low or old transmission fluid, worn drive belt, damaged linkage, air trapped in the system, or internal wear inside the transaxle. The first two are the most common and the easiest to fix. That is why a careful inspection should start there.
1. Low, old, or overheated transmission fluid
Hydrostatic systems depend on clean fluid at the right level. If the fluid is low, the transmission can draw in air, which reduces pressure and creates weak or jerky movement. If the fluid is dirty or overheated, the pump and motor cannot build pressure the way they should.
Heat is a bigger enemy than many owners realize. After about 20 to 40 minutes of work, thin or degraded fluid can lose performance enough to make the mower feel tired. That is why a mower may work fine for a short test and then fail during real mowing.
2. Worn or slipping drive belt
The drive belt transfers engine power to the hydrostatic unit. If the belt is glazed, stretched, cracked, or oily, it can slip under load. When that happens, the mower may still move on flat ground but lose power on grass, hills, or when reversing.
A slipping belt can also create a high-pitched squeal, a burning smell, or delayed movement after you press the pedal. These are strong clues that the transmission is not the real problem yet. The belt may simply not be delivering enough power to it.
3. Binding or misadjusted linkages
The pedal, rod, return spring, and control linkage tell the transmission how far to move. If one part sticks or comes out of adjustment, the hydrostatic unit may not get the correct input. The result can be weak forward drive, no reverse, or a mower that creeps even when your foot is off the pedal.
This is a common hidden issue because it looks like a transmission failure from the seat. In reality, the control lever may not be reaching full travel. A small bend, rust, or worn bushing can make a big difference in how the mower drives.
4. Air trapped in the system
Air bubbles in a hydrostatic system reduce pressure and create spongy or erratic movement. This can happen after fluid service, a leak, or a low-fluid condition. A mower with air in the system may move in short bursts, hesitate when changing direction, or feel stronger after a few minutes and then weaker again.
Unlike a simple belt issue, air problems often show up as inconsistent behavior. The mower may behave differently from one minute to the next. That is a useful clue when you are trying to separate air-related symptoms from worn internal parts.

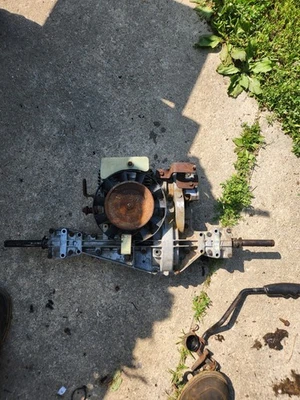

5. Internal wear in the transmission
If the pump, motor, seals, or gears inside the transaxle are worn, no adjustment outside will fully fix the problem. Internal wear usually shows up as very weak movement even with correct fluid and belt condition. It may also show up as one-direction failure, severe whining, or movement that gets worse when the system warms up.
This is the least common of the major causes, but it is the most expensive one. Before assuming the transmission is ruined, confirm the external parts first. Many owners replace a transaxle too early because a belt or linkage problem was missed.
Symptoms that point to each problem
Good diagnosis starts with the symptom. The RT4000 will usually tell you what is wrong if you pay attention to when the problem happens, how fast it happens, and whether it affects forward, reverse, or both. The table below gives a quick match between symptoms and likely causes.
| Symptom | Most likely cause | What it usually means |
|---|---|---|
| Mower moves slowly in both directions | Low fluid, slipping belt, internal wear | Drive pressure is weak or not reaching the transaxle |
| Forward works but reverse is weak | Linkage adjustment, internal wear | Control travel is off or one side of the hydro unit is worn |
| Jerky or surging movement | Air in system, dirty fluid, belt slip | Power delivery is uneven |
| Mower will not move when hot | Overheated fluid, internal wear | Performance drops after thermal expansion or fluid thinning |
| Grinding, whining, or squealing noise | Belt issue, low fluid, failing transaxle | Mechanical drag or hydraulic stress is present |
| Creeps when pedal is released | Linkage misadjustment, return spring issue | Neutral position is not centered |
Credit: lawntrend.com
Symptoms that are easy to misread
Some signs look like one problem but come from another. For example, a mower that loses power on hills may not have a bad transmission at all. It may simply have a belt that slips under higher load.
Another common mistake is blaming the transaxle when the mower only fails after 20 minutes of use. Heat-related failure can point to old fluid, blocked cooling fins, or worn seals long before the unit is fully dead. That is why timing matters as much as the symptom itself.
How to diagnose the problem step by step
Use a simple inspection order so you do not chase the wrong part. Start with the easy checks that fix most cases, then move toward deeper issues. This saves money and cuts down on trial-and-error repairs.
-
Check the drive belt first.
Look for cracks, fraying, glazing, oil, or slack. If the belt can be pushed off-line easily or looks shiny and worn, replace it before moving on. A weak belt can mimic a failed transmission very well.
-
Inspect linkage and pedal movement.
Press the forward and reverse pedal slowly. The travel should feel smooth and return fully to neutral when released. If it sticks, binds, or does not return all the way, clean the pivot points and check springs and bushings.
-
Look for fluid leaks and low fluid condition.
Check the transmission housing, hoses if equipped, and nearby seals for wet spots. Low fluid often leaves a darker dusty ring around the leak area. If the mower has been running hot, let it cool before checking anything near the transaxle.
-
Test the mower under light and medium load.
Drive on flat ground first, then on a mild slope. If the mower works on flat ground but fails on inclines, that often points to belt slip, low fluid, or weakening internal pressure.
-
Listen for noise and note when it happens.
Whining at low speed can point to air or low fluid. A squeal when engaging drive usually points to belt slip. A grinding or heavy rumble is more serious and may suggest internal damage.
-
Check for heat-related loss of drive.
If performance drops after 15 to 30 minutes, suspect fluid breakdown, blocked cooling, or internal wear. Clean dirt and grass from the transaxle area so it can shed heat properly.
One helpful official reference for safe mower servicing is the mower safety guidance from the U.S. Consumer Product Safety Commission. It is a good reminder to disconnect power and work carefully around blades and moving parts.
Fixes that solve the most common cases
Once you know the likely cause, the repair usually becomes straightforward. The simplest fixes often solve the majority of RT4000 drive complaints. Start there before replacing expensive parts.
Credit: justanswer.com
Replace a worn drive belt
If the belt is cracked, glazed, stretched, or oily, replace it with the correct OEM-style belt. A belt that is only slightly worn can still slip under load, especially when the mower deck is engaged and grass resistance rises. That is why a belt should be treated as a wear item, not a lifetime part.
After replacement, check belt routing carefully. A belt installed one pulley wrong can create the same symptoms as a bad transmission. This mistake is common and easy to overlook.
Clean and adjust the linkage
Clean rust, dirt, and old grease from the pedal linkage and pivot points. Replace damaged springs or worn bushings, then verify that the control arm returns fully to neutral. If the mower creeps, neutral adjustment may be off.
Do not force bent rods back into shape unless you know their exact geometry. Even a small bend can change pedal travel enough to reduce drive performance. Straightening the part incorrectly can make the problem worse.
Service the fluid and remove air
If the transmission is serviceable, check the manufacturer-recommended fluid type and level. Top off only with the correct fluid. Wrong fluid can change viscosity and reduce performance, especially in hot weather.
If the system was opened or ran low, purge air according to the mower manual. The exact method can vary, but the goal is the same: move the mower slowly forward and backward so trapped air can work out of the system. Short, controlled cycles are better than long, hard runs during purging.
Improve cooling around the transaxle
Grass clippings, dirt, and mud trap heat. Clean the transaxle housing, fans, and nearby fins so airflow is not blocked. This matters more than many owners think because heat makes weak fluid and worn seals fail faster.
If the mower is used for long sessions in thick grass, take breaks and avoid overloading it continuously. A hydrostatic unit can only shed so much heat. Once it is overheated, performance often drops sharply.
Replace the transmission only after the basics are ruled out
If the belt is good, linkage is correct, fluid is right, and the mower still has weak drive or no drive, the transaxle may be worn internally. Signs of deeper failure include severe whining, movement that gets worse as the unit warms, or strong loss of power in both directions.
At that point, replacement may be the most practical option. In some cases, repair is not cost-effective because internal hydrostatic components are sealed or difficult to rebuild reliably. That is why careful diagnosis matters before spending on a new unit.
Common mistakes that make the problem worse
Many RT4000 owners create extra damage by guessing too fast. The most common mistake is assuming the transmission is bad because the mower will not move well. In reality, the real cause is often a belt or linkage issue that is much cheaper to fix.
Another mistake is using the wrong fluid. Hydrostatic systems are sensitive, and a fluid that seems “close enough” can still hurt performance. Even a small mismatch can change heat behavior and pressure response.
People also skip the cooling cleanup. A thick layer of dirt around the transaxle can turn a minor issue into a major one. If the system is already weak, heat will expose the weakness faster.
Finally, some owners keep testing a failing mower under full load. That can turn a recoverable issue into permanent damage. If the drive suddenly gets much weaker, stop testing until you inspect the basics.
When the transmission is probably failing for real
Some symptoms are strong warning signs of internal failure. If the RT4000 has correct fluid, a good belt, free linkage, and still moves very poorly, the transaxle may be worn out. Severe whining, loss of drive when warm, and one-direction failure are especially concerning.
Another clue is repeated failure after maintenance. If the mower works for a short time after fluid service but then loses drive again, the issue may be internal leakage or worn pumping parts. That kind of pattern usually does not improve with adjustment alone.
If the housing is leaking heavily, the unit is noisy, and the mower cannot climb even a small slope, it may be time to replace the transmission assembly. At that stage, further troubleshooting has limited value.
How to prevent future hydrostatic problems
Prevention is mostly about heat control and basic maintenance. Keep the area around the transmission clean, inspect the belt regularly, and do not ignore small changes in drive feel. A mower usually gives warning signs long before it quits completely.
Check for belt wear every season, and sooner if you mow thick grass or hilly ground. Also watch for creeping, slow response, or noise changes after warm-up. These small signs often show up weeks before a major failure.
Use the mower within its design limits. Continuous heavy pulling, deep grass, and poor cooling create extra stress on the hydrostatic drive. A little preventive attention can add years of service life.
Credit: ebay.com
Final take on Craftsman RT4000 hydrostatic transmission problems
Most Craftsman RT4000 hydrostatic transmission problems are not caused by a dead transmission. More often, the real issue is a worn belt, low or old fluid, trapped air, or linkage that is out of adjustment. Those fixes are usually faster and cheaper than replacing the whole transaxle.
The key is to diagnose in order: belt, linkage, fluid, cooling, then internal wear. If the problem gets worse when hot, under load, or in one direction only, that clue can save you a lot of time. Use the symptom pattern, not guesswork, to guide the repair.
When the basics check out and the mower still has weak or noisy drive, internal transmission failure becomes more likely. At that point, a replacement may be the practical answer. But in many cases, careful inspection brings the RT4000 back to normal without major parts.
After the main fault is fixed, run the machine briefly under light load and recheck the related belt, wiring, fuel, fluid, and safety-switch areas before returning it to normal work.
FAQs
Why does my RT4000 move slowly even though the engine sounds fine?
If the engine runs normally but the mower moves slowly, the problem is usually in the drive system. A worn belt, low fluid, air in the transmission, or linkage that is not reaching full travel are the most likely causes.
Why does the mower work better when it is cold?
That usually points to fluid thinning, internal wear, or a belt that slips more as temperatures rise. Hydrostatic systems often show their weakness after 15 to 30 minutes of use because heat lowers pressure performance.
Can a bad belt really feel like a bad transmission?
Yes. A slipping belt can cause weak movement, delayed engagement, noise, and loss of power on hills. Many owners replace the transmission first when the belt is actually the real problem.
Why does my RT4000 creep when I release the pedal?
Creeping usually means the neutral position is off or the linkage is binding. Check the return spring, pivot points, and control adjustment before assuming the transaxle itself is damaged.
When should I stop troubleshooting and replace the transmission?
If the belt, fluid, cooling, and linkage are all correct and the mower still has severe loss of drive, loud whining, or no movement in one or both directions, the transmission may be failing internally. At that point, replacement is often the most practical fix.
